Victron Energy Lynx Class-T Power In M10 Busbar

FREESHIPPING

JOIN NOWWHOLESALEDEALER

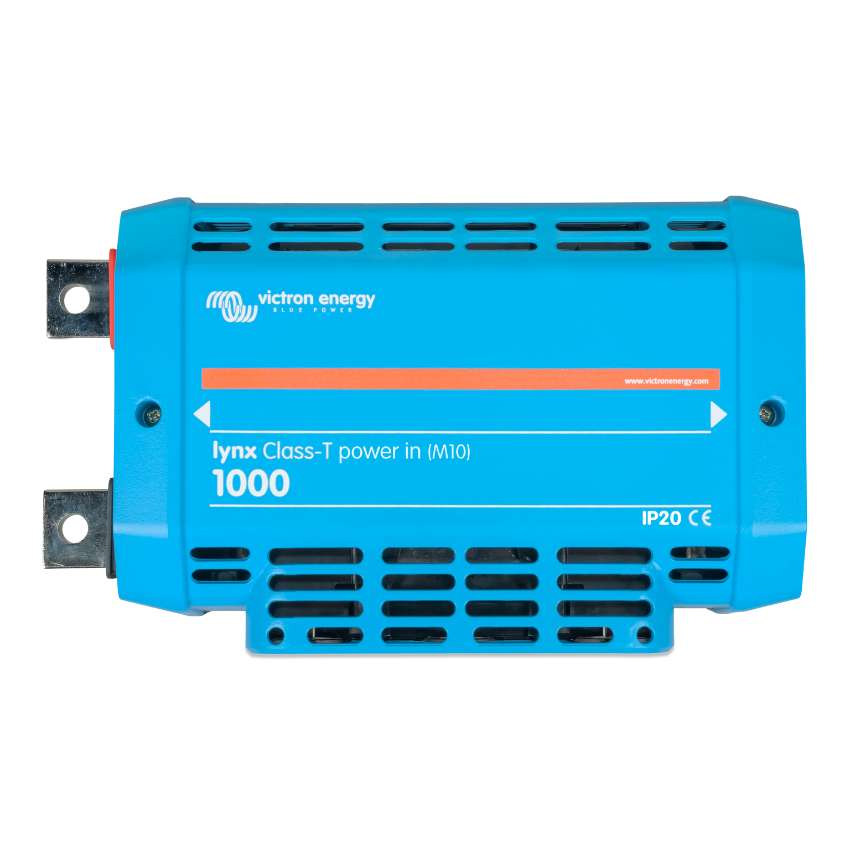

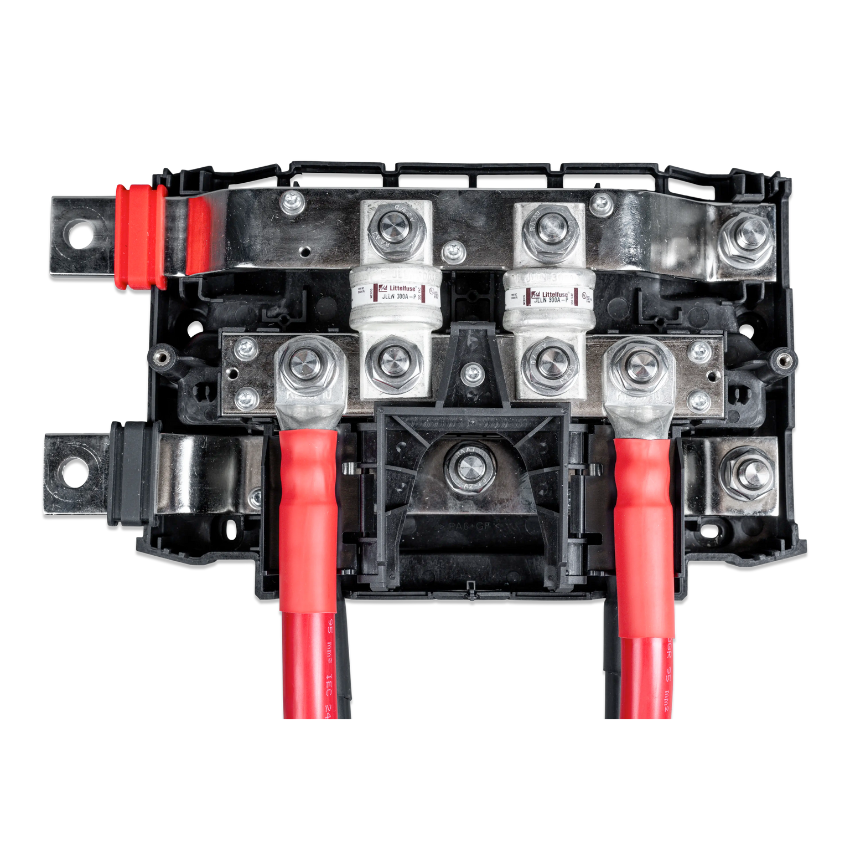

Victron Energy Lynx Class-T Power In M10 Busbar Open

Victron Energy Lynx Class-T Power In M10 Busbar Side

Victron Energy Lynx Class-T Power In M10 Busbar

GTIN: 8719076062967

SKU: LYN060404010 Categories: Wiring and Circuit Protection, Power Distribution (Busbars)

$170.00

Availability: In Stock

Shipping & Delivery

Ships in 1-3 days. Contact us for specific lead times.

Looking for a Better Deal?

Complete systems qualify for a discount. Email us your system requirements. Become a Victron dealer and save on every order.

Documentation

Lynx Class-T power In Manual

Installation manual for Victron Energy Lynx Class-T Power In with M10 busbar

Victron Energy Limited Warranty

Limited warranty policy for Victron power products

Product Info

The Lynx Class-T Power In connects and fuses up to two strings of Lithium batteries. It features a positive and negative busbar, and connections for two Class-T fuses as well as a connection to ground the DC system. The Class T-fuses, available in 225A, 250A, 350A and 400A, must be purchased separately.
For installations using three or more strings of Lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.

The Lynx DC Distribution System

The Lynx Distribution System is a versatile modular setup designed for DC connections, distribution, fusing, battery monitoring, and Lithium battery management. It comprises several components:

Lynx Power In: Features positive and negative busbars with four connections for batteries or DC equipment. Available in two versions with M8 or M10 busbars.
Lynx Distributor: Offers positive and negative busbars with four fused connections for batteries or DC equipment, along with fuse monitoring. Also available in two versions with M8 or M10 busbars.
Lynx Shunt VE.Can: Includes a positive busbar with space for a main system fuse and a negative busbar with a shunt for battery monitoring. Equipped with VE.Can communication for monitoring and setup using a GX device.
Lynx Smart BMS: Specifically designed for use with Victron Energy Smart Lithium batteries, it features a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. Comes in a 500A model with M8 busbars or a 1000A model with M10 busbars. It offers Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal.
