Midnite 120VAC MNEAC DIN Mount Breaker
$6.00 – $8.00
Looking for a Better Deal?
Inventory sale valid in the continental US only.
Documentation
Product Info

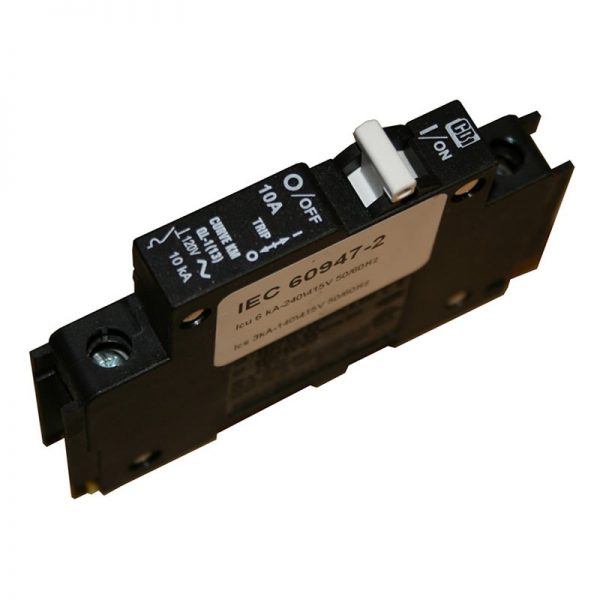

Midnight Solar’s MNEAC breakers are rated to break the full rated load at the rated voltage repeatedly, without damage. They are are 0.5” (13 mm) wide. Always use a properly sized breaker for disconnecting. MidNite Solar breakers have been evaluated by ETL and are listed for US and Canada.
Max. AC voltage: 150 VAC
1 Pole
Breaker Torque Value: 20 In-Lbs (2.3NM)
Dimensions (LxWxH): 2.9 × 4.7 × .5 inches
Weight: 0.3 lbs
MNEAC breakers listed for 10,000 AIC: MNEAC5, MNEAC10, MNEAC15, MNEAC20, MNEAC2
MNEAC breakers listed for 3,000 AIC: MNEAC30, MNEAC40, MNEAC50, MNEAC60
All MidNite circuit breakers hold 100% rated current independent of ambient temperature. These 120 Volt AC breakers mounts on a DIN rail, therefore they can be used with Outback, Midnite Solar and other combiner boxes.
