Victron GX Touch 50 Flush Display

The GX Touch 50 and GX Touch 70 are available in flush mount versions, designed for a cleaner and more integrated installation. Instead of sitting on top of the mounting surface, the display sits neatly into the wall or panel for a modern, low-profile finish. The flush mount version is ideal for installations where appearance matters, including control panels, cabins, vans, boats, and off-grid system enclosures. The GX Touch Flush Mount can be installed in two ways, depending on the application:

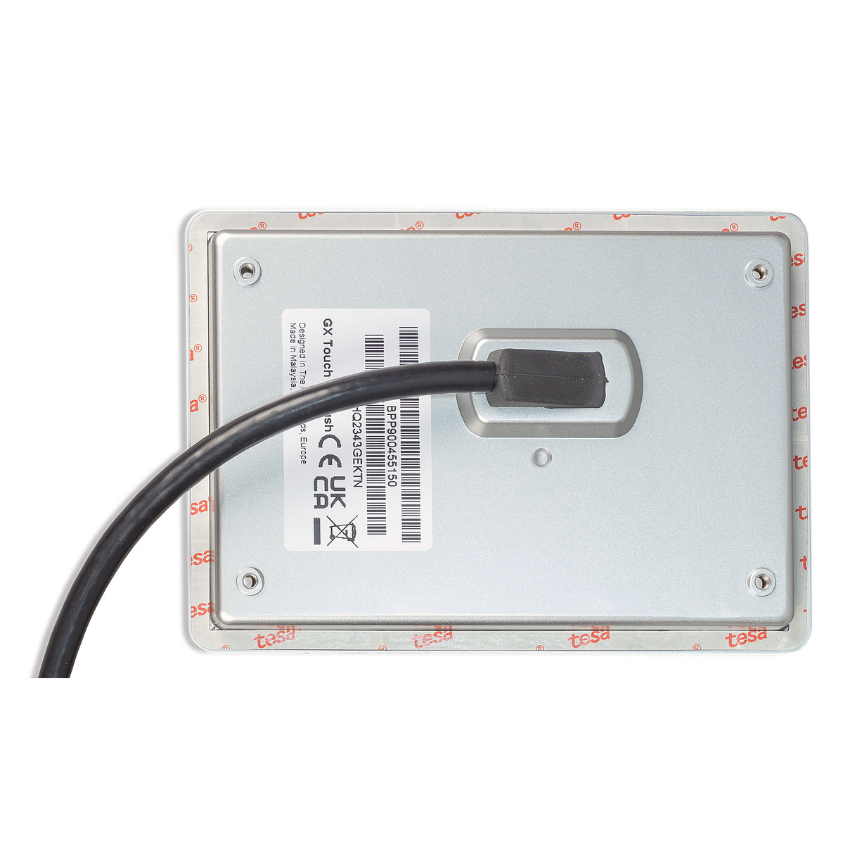

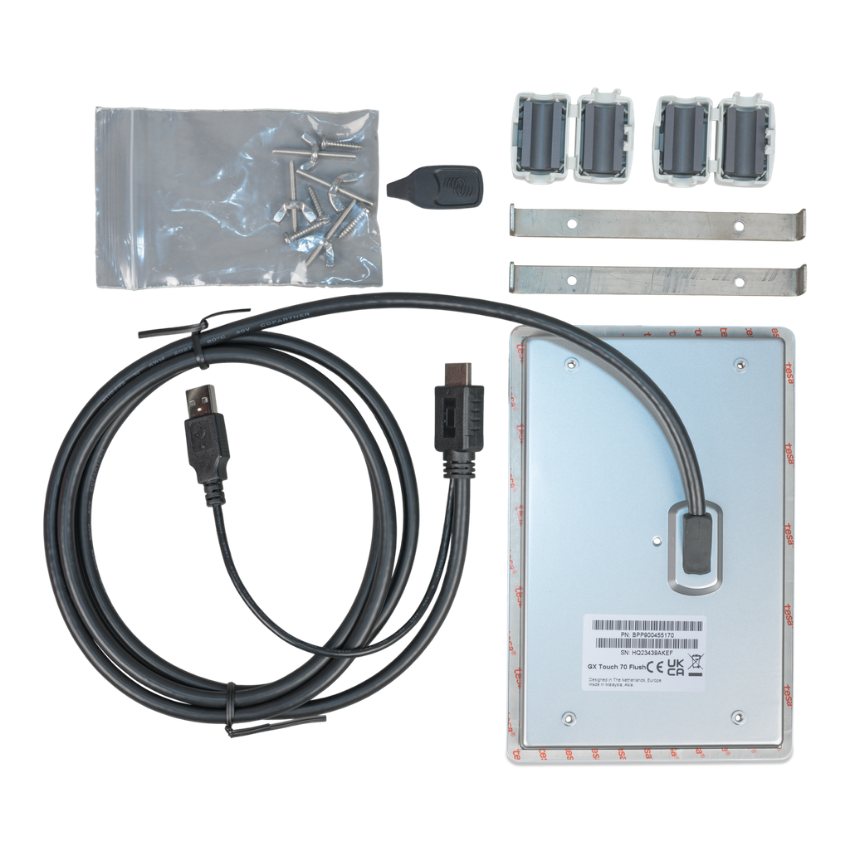

Sealed Mount – The sealed mount uses a rubber seal, double-sided tape, brackets, and rods to secure the screen in place. This method helps prevent water from getting behind the display while still allowing the screen to be removed if needed. This option requires a flat, clean mounting surface and rear access to the installation area.

Glued Mount – When rear access is not available, the screen can be installed using double-sided tape. This provides a simple and effective way to achieve a flush-mounted look without additional mounting hardware. This option is best suited for clean, flat surfaces where a straightforward installation is preferred.

When you pair a GX Touch 50 Display with the Cerbo GX you gain immediate visibility of the power system’s performance. All the GX Touch displays are waterproof and connect with a single HDMI cable (included).

Have control of your Victron Energy system by pairing the Cerbo GX with a GX Touch display, linking to the VictronConnect App via Bluetooth, or remotely accessing Victron’s Remote Management System (VRM). The Cerbo GX features a built-in WiFi access point and Bluetooth connectivity with LED status lights in the front panel.
